ARC-4020Ml/4030Ml(Compact Tower JBOD Box)
ARC-1110ML/1120ML/1211x/1221x
|
| |
|
| |
| Areca external SAS/SATA ll RAID adapters and ARC-4020Ml/ARC-4030Ml are an external solution with Multi-lane (Ml)/Min SAS host connectivity for use with your PC or Mac workstation. Those controllers support up to 8 SATA ll peripheral devices using multi-lane box (ARC-4020Ml) or Min SAS box (ARC-4030Ml). These external SAS/SATA ll RAID adapters have the same RAID kernel of its field-proven external SAS/SATA ll RAID controllers. The ARC-4020Ml/4030Ml enclosure benefits fault/activity LED from these adapters serial bus enclosure management signal connector. It is a compact desktop storage system music for files, enthusiastic gamer and professional audio and video editor. |
|
| |
|
| |
For external RAID adapter products photo link: http://www.areca.com.tw/support/photo_gallery.htm |
| |
|
| |
Adapter Architecture |
| |
 |
Intel IOP331/IOP341 I/O processor |
| |
|
PCI-X 64bit/133MHz or PCI-Express x8 bus |
| |
|
256MB on-board SDRAM with ECC protection |
| |
|
Write-through or write-back cache support |
| |
|
Support up to 4/8 SAS/SATA ll drives |
| |
|
Multi-adapter support for large storage requirements |
| |
|
BIOS boot support for greater fault tolerance |
| |
|
BIOS PnP (plug and play) and BBS(BIOS boot specification) Support |
| |
|
NVRAM for RAID event & transaction log |
| |
|
Redundant flash image for adapter availability |
| |
|
Battery Backup Module(BBM) ready (Option) |
| |
|
RoHS Compliant |
| |
|
| |
RAID Features |
| |
|
RAID level 0, 1, 1E, 3, 5, 6 and JBOD |
| |
|
Multiple RAID selection |
| |
|
Online Array roaming |
| |
|
Online RAID level/stripe size migration |
| |
|
Online capacity expansion and RAID level migration simultaneously |
| |
|
Online Volume set growth |
| |
|
Instant availability and background initialization |
| |
|
Automatic insertion/removal detection and rebuild |
| |
|
Greater than 2TB per volume set |
| |
|
Support spin down drives when not in use to extend service life (MAID) |
| |
|
Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives |
| |
|
|
| |
Monitors/Notification |
| |
|
System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer |
| |
|
SMTP support email notification |
| |
|
SNMP support for remote notification |
| |
|
Series bus enclosure management ready |
| |
|
| |
RAID Management |
| |
|
Field-upgradeable firmware in flash ROM |
| |
|
In-Band Manager |
| |
|
Hot key boot-up McBIOS RAID manager via BIOS |
| |
|
Support controller’s API library for customer to write its own AP |
| |
|
Support Command Line Interface (CLI) |
| |
|
Browser-based management utility via ArcHttp Proxy Server |
| |
|
Single Admin Portal (SAP) monitor utility |
| |
|
Out-of-Band Manager |
| |
|
Put bottom and LCD display panel (option) |
| |
|
|
| |
Operating System |
| |
|
Windows Vista/2000/XP/Server 2003 |
| |
|
Linux (RedHat, SuSE, Debian, Mandrake, TurboLinux, CentOS, etc.) FreeBSD |
| |
|
Novell Netware 6.5 |
| |
|
Solaris 10 x86/x86_64 |
| |
|
SCO UnixWare 7.x.x |
| |
|
Mac OS X 10.X (EFI BIOS support) |
| |
|
| |
|
 |
 |
ARC-4020Ml (Front) |
|
|
ARC-4020Ml (Rear) |
|
|
| |
ARC-4020 Ml |
| Host Interface |
External SFF-8470 |
| Host Cable |
1 x SFF-8088 to SFF-8088 or 1 x SFF-8470 to SFF-8470 |
| RAID Controller Inside |
Combine with ARC-11x0ML/12x1x |
| Disk Interface |
4 x SAS/SATA ll 3Gb/s |
| Enclosure Management |
Serial bus cable |
| Form Factor |
Compact – 4 Disk Tower |
| Power Supply/In/out |
180W / 90-256V AC / +12V/9A, +5V/9A, +3.3V/4.5A |
| Dimension (W x H x D) |
123 x 165.6 x232 mm |
| Power Supply/In/Out |
9.0 lbs / 4.1Kg |
|
| |
|
|
| |
|
|
 |
|
ARC-4030Ml (Front) |
|
|

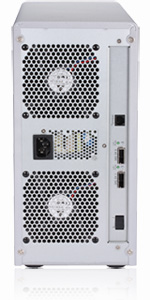

ARC-4030Ml (Rear) |
|
|
| |
|
ARC-4030 Ml |
| Host Interface |
External SFF-8088 |
| Host Cable |
1 x SFF-8088 to SFF-8470 or 1 x SFF-8088 to SFF-8088 |
| RAID Controller Inside |
Combine with ARC-11x0ML/12x1x |
| Disk Interface |
8 x SAS/SATA ll 3Gb/s |
| Enclosure Management |
Serial bus cable |
| Form Factor |
Compact – 8 Disk Tower |
| Power Supply/In/out |
220W / 90-256V AC / ++12V/9A, +5V/16A, , +3.3V/14A |
| Dimension (W x H x D) |
146 x 302 x 290 mm |
| Power Supply/In/Out |
14.9 lbs / 6.8Kg |
|
| |
|
|
| |
|
|
