ARC-93xx series
(12Gb/s SAS RAID Subsystem)
ARC-9324R2

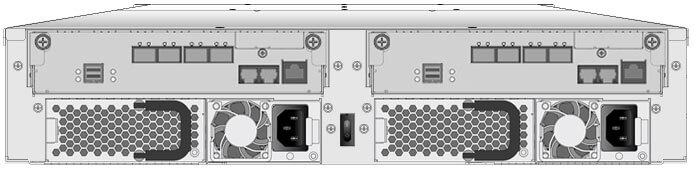

ARC-9312R2 / ARC-9324R2 (rear)
ARC-9324R4

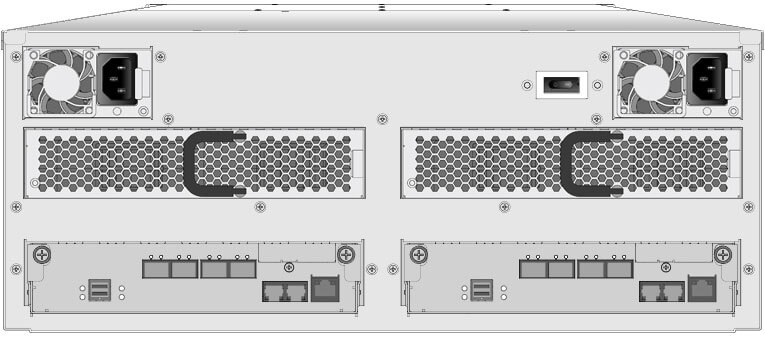

ARC-9324R4 (rear)
12Gb/s SAS-to-SAS
32Gb/s Fibre-to-SAS
10Gb/s iSCSI-to-SAS
System Architecture
✵ Support 12.0Gbps SAS ports
✵ Support three host interface options: 12Gb/s SAS, 10Gb/s iSCSI or 32Gb/s FC
✵ Support up to 8GB, optional FBM/BBM cache
✵ Single or Dual RAID controller modular design
✵ Hot-swap and redundant components for increased system availability
✵ Advanced configuration settings video optimized performance
✵ Hard Drive Firmware Update All At Once
✵ Support read/write cache allocation by policy
✵ Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100)
Faster Than Ever
Availability & Security
Unparalleled Performance
Host Interface
• SAS-to-SAS : 2 x 12Gb/s SAS Ports
• Fibre-to-SAS : 2/4 x 32Gb/s Fibre channels
• iSCSI-to-SAS : 2 x 10Gb/s iSCSI channels
High Performance ROC
Dual Core RAID-on-Chip (ROC) 1.2 GHz
2GB (default), up to 8GB DDR3-1866 ECC Protection
Drive Interface
Up to 512 12Gb/s SAS/SATA drives, using SAS expanders
One downstream SFF-8644 (4 x 12Gb/s) expansion connectors per controller
ARC-93xx Series 12Gb/s SAS RAID Subsystem
2U-12 bays / 2U-24 bays / 4U-24 bays 19-inch rackmount chassis
ARC-9312R2 / ARC-9324R2
ARC-9324R4
12Gb/s SAS-to-SAS
32Gb/s Fibre-to-SAS
10Gb/s iSCSI-to-SAS
The 12Gb/s SAS interface supports both 12Gb/s SAS disk drives for data-intensive applications and 6Gb/s SATA drives for low-cost bulk storage of reference data. The Fibre/SAS/iSCSI to 12Gb/s SAS RAID controllers attach directly to SATA/SAS midplanes to support up to 12/24 internal SAS/SATA devices or increase capacity using one additional Min SAS HD SFF-8644 external connector.
The 12Gb/s SAS RAID subsystem supports flexibility interface configuration; 8 x 12Gb/s SAS ports, 2/4 x 32Gb/s fibre channels or 2 x 10Gb/s iSCSI channel host and 4 x 12Gb/s SAS ports expander for performance and easy expansion. When used with 12Gb/s SAS expanders, the controller can provide up to (256) devices through one or more SAS JBODs, making it an ideal solution for enterprise class storage applications that called for maximum configuration flexibility.
Model_Host |
ARC-93xx Series SAS RAID Subsystem | |||
| -SAS- | -Fibre- | -iSCSI- | ||
|
2 x 12Gb/s SAS ARC-9312R2-SS1D ARC-9312R2-DS1D ARC-9324R2-SS1D ARC-9324R2-DS1D ARC-9324R4-SS1D ARC-9324R4-DS1D |
2 x 32Gb/s Fibre ARC-9312R2-SF5D ARC-9312R2-DF5D ARC-9324R2-SF5D ARC-9324R2-DF5D ARC-9324R4-SF5D ARC-9324R4-DF5D |
4 x 32Gb/s Fibre ARC-9312R2-SF5Q ARC-9312R2-DF5Q ARC-9324R2-SF5Q ARC-9324R2-DF5Q ARC-9324R4-SF5Q ARC-9324R4-DF5Q |
2 x 10Gb/s iSCSI ARC-9312R2-SI0D ARC-9312R2-DI0D ARC-9324R2-SI0D ARC-9324R2-DI0D ARC-9324R4-SI0D ARC-9324R4-DI0D |
|
| Host Interface | • SAS-to-SAS 2 x 12Gb/s SAS Ports |
• Fibre-to-SAS 2 x 32Gb/s Fibre channels 4 x 32Gb/s Fibre channels |
• iSCSI-to-SAS 2 x 10Gb/s iSCSI channels |
|
| JBOD Expansion Port | One downstream SFF-8644 (4 x 12Gb/s) expansion ports per controller | |||
| Max. JBOD per RAID Ctrl | Expansion up to 7 JBODs with 512 HDDs limitation | |||
| Data Transfer Rate | Up to 12Gb/s per port | |||
| RAID_on_Chip | Dual Core PPC476 1.2 GHz ROC | |||
| Cache Protection | One 240-pin DIMM socket for 2GB (default) DDR3-1866, 1RX8,ECC module - up to 4GB or 8GB DDR3-1866, 1RX8, Unbuffered/Registered ECC module or - up to 4GB or 8GB DDR3-1600, 2RX8, Unbuffered/Registered ECC module |
|||
| Operating Systems | OS Independent | |||
| Power Supply |
• Redundant and hot-swappable 550W x2 with PFC and energy-efficient 80Plus Platinum Compliant. • Supports 100–240VAC input at 47 and 63Hz frequency |
|||
| Cooling | Two pluggable, hot swappable redundant fan modules with fan speed control for wide range airflow design | |||
| RAID Levels | 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD | |||
| RAID Features |
• Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID 100) • Automatic drive insertion/removal detection and rebuilding • Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk • Multiple RAID selection • Instant availability and background initialization • Support global and dedicated hot spare • Automatic drive insertion/removal detection and rebuilding • Configurable stripe size up to 1MB • Support HDD firmware update • Online array roaming • Online RAID level/stripe size migration • Online capacity expansion and RAID level migration simultaneously • Online volume set growth • SED (self-encrypting drives) function support • Support for native 4K and 512 byte sector SAS and SATA devices • Support intelligent power management to save energy and extend service life • Support NTP protocol synchronize RAID controller clock over the on board Ethernet port • Multiple pairs SSD/HDD disk clone function • SSD automatic monitor clone (AMC) support |
|||
| Management Monitor |
McRAID Storage Manager • Web-based GUI management utility • Graphical-based management utility • Access terminal menu by telnet via a LAN port • Field-upgradeable firmware in flash ROM • Firmware-embedded manager via RS-232 port Monitors/Notification • LCD control panel for setup, alarm mute and configuration • System status indication through LCD, LED and alarm buzzer • SNMP • SMTP • Enclosure management ready (SES over in-band SAS) |
|||
| Availability and Reliability |
• Redundant controller operation with active/active and fail-over/fail-back function • Dual-active RAID controller with cache mirroring through dedicated high speed bus • Automatic synchronization of firmware version in the dual-active mode • Multi-path & load-balancing support |
|||
| Operating Temperature | 0 °C to 40 °C | |||
| Operating Humidity | 10% to 85%, non-condensing | |||
| Regulatory Certification | CE, FCC | |||
| Warranty | 3 years | |||
| FBM/BBM Support | ARC-8008-FBN + ARC-8006-2 or ARC-8008-FBN + ARC-8008-FB |
|||
Model_Form Factor |
ARC-93xx Series SAS RAID Subsystem | ||
| ARC-9312R2 ARC-9312R2-SS1D ARC-9312R2-DS1D ARC-9312R2-SF5D ARC-9312R2-SF5Q ARC-9312R2-DF5D ARC-9312R2-DF5Q ARC-9312R2-SI0D ARC-9312R2-DI0D |
ARC-9324R2 ARC-9324R2-SS1D ARC-9324R2-DS1D ARC-9324R2-SF5D ARC-9324R2-SF5Q ARC-9324R2-DF5D ARC-9324R2-DF5Q ARC-9324R2-SI0D ARC-9324R2-DI0D |
ARC-9324R4 ARC-9324R4-SS1D ARC-9324R4-DS1D ARC-9324R4-SF5D ARC-9324R4-SF5Q ARC-9324R4-DF5D ARC-9324R4-DF5Q ARC-9324R4-SI0D ARC-9324R4-DI0D |
|
| Form Factor | 2U-12 bays 19-inch rackmount chassis |
2U-24 bays 19-inch rackmount chassis |
4U-24 bays 19-inch rackmount chassis |
| Drive Channel per Enclosure | Up to 12 x 3.5”/2.5” HDDs or SSDs |
Up to 24 x 2.5” HDDs or SSDs |
Up to 24 x 3.5”/2.5” HDDs or SSDs |
| Physical Dimensions (H x W x D) |
• Without handles: 88.2 x 445 x 506 mm (3.2 x 17.5 x 19.9 in) • With handles: 88.2 x 482 x 542 mm (3.2 x 22.9 x 21.3 in) |
• Without handles: 88.2 x 445 x 470 mm (3.2 x 17.5 x 18.5 in) • With handles: 88.2 x 482 x 506 mm (3.2 x 22.9 x 19.9 in) |
• Without handles: 176.4 x 445 x 506 mm (6.9 x 17.5 x 19.9 in) • With handles: 176.4 x 482 x 542 mm (6.9 x 22.9 x 21.3 in) |
| Weight (W/O Drives) |
• Single: 27 kg (59.5 lb) • Dual: 28 kg (61.7 lb) |
• Single: 28 kg (61.7 lb) • Dual: 29 kg (63.9 lb) |
• Single: 34 kg (74 lb) • Dual: 35 kg (77 lb) |
Downloads
| File | Version | Date |
|---|---|---|
| ARC-93xx-SAS (12G SAS-to-SAS) firmware |
1.69
|
2023/12/15 |
|
1. Patch PL library to enable PM2 support 2. Seagate SAS/SATA MACH.2 support |
||
| ARC-93xx-Fibre (16G Fibre-to-SAS) firmware |
1.69
|
2023/12/15 |
|
1. Patch PL library to enable PM2 support 2. Seagate SAS/SATA MACH.2 support |
||
| ARC-93xx-iSCSI (12G iSCSI-to-SAS) firmware |
1.69
|
2023/12/15 |
|
1. Patch PL library to enable PM2 support 2. Seagate SAS/SATA MACH.2 support |
||
